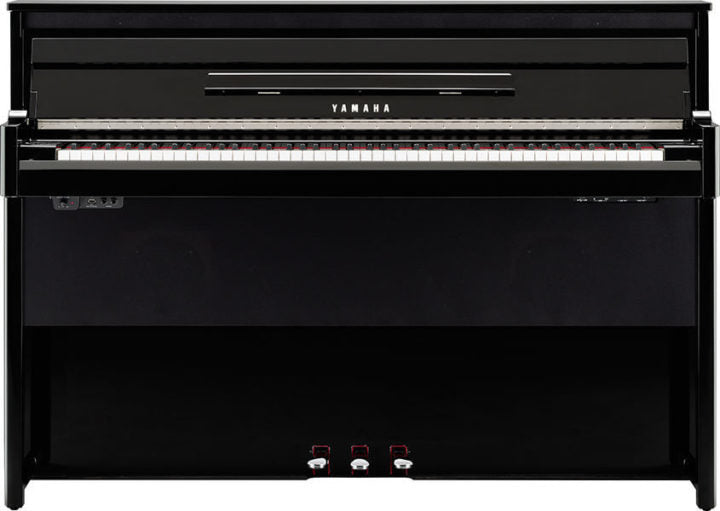

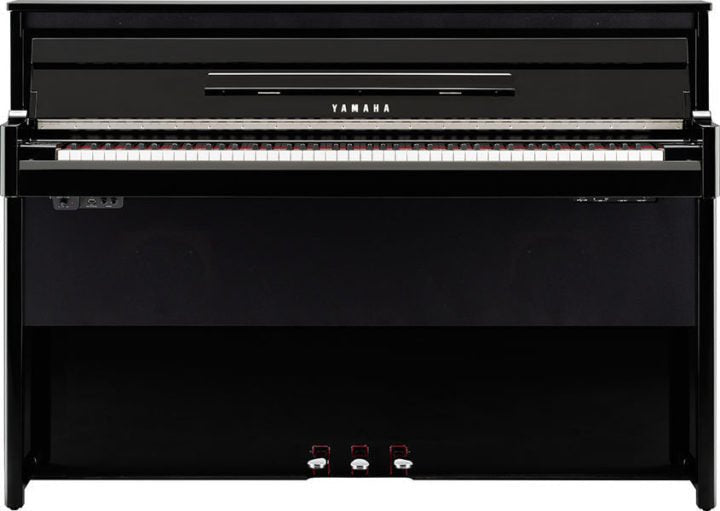

The Yamaha NU1 combines the traditions of an acoustic instrument with the innovation of digital technology. Featuring the same acoustic piano action used in Upright pianos, and a refined, compact design.
Key Features
USB audio recording and playback captures or plays back performances on a USB drive.
The Specialized Upright Piano Action provides the player with a real acoustic upright action for genuine touch and feel.
CFX Stereo Sampling faithfully reproduces the sound of Yamaha’s flagship CFX Full Concert Grand.
Acoustic Chambering and proprietary Yamaha engineered acoustic dampers are used to create genuine acoustic resonance and vibration.
MIDI Recording allows the player to preserve their musical memories in the instrument’s internal memory or save them to USB.
Color/Finish
Cabinet
Color
Polished Ebony
Finish
Polished
Size/Weight
Dimensions
Width
1,501mm (59-1/8″)
Height
1,024mm (40-5/16″)
Depth
463mm (18-1/4″)
Weight
Weight
109kg (240lbs., 5oz.)
Control Interface
Keyboard
Number of Keys
88
Type
Acrlic resin (white keytops)
Keyboard Action
Specialized Upright Piano Action
Tactile Response System (TRS)
–
Pedal
Number of Pedals
3
Half Pedal
Yes
Cabinet
Key Cover
Soft-Close Fallboard
Yes
Music Rest
Yes
Voices
Tone Generation
Tone Generating Technology
CFX Sampling
Polyphony
Number of Polyphony (Max.)
256
Preset
Number of Voices
5
Effects
Types
Reverb
Yes
Songs
Preset
Number of Preset Songs
50
Recording
Number of Songs
10
Number of Tracks
1
Data Capacity
550KB (approx.)
Recording Function
Yes
Functions
Overall Controls
Metronome
Yes
Tempo Range
5-500
Transpose
Yes
Tuning
Yes
Scale Type
7 types
Amplifiers and Speakers
Spatial Acoustic Speaker System
–
Soundboard Resonator
–
Amplifiers
(40W + 40W) x 2
Speakers
(6-5/16″ + 3/4″) x 2
Power Supply
Power Supply
AC Inlet
