Description

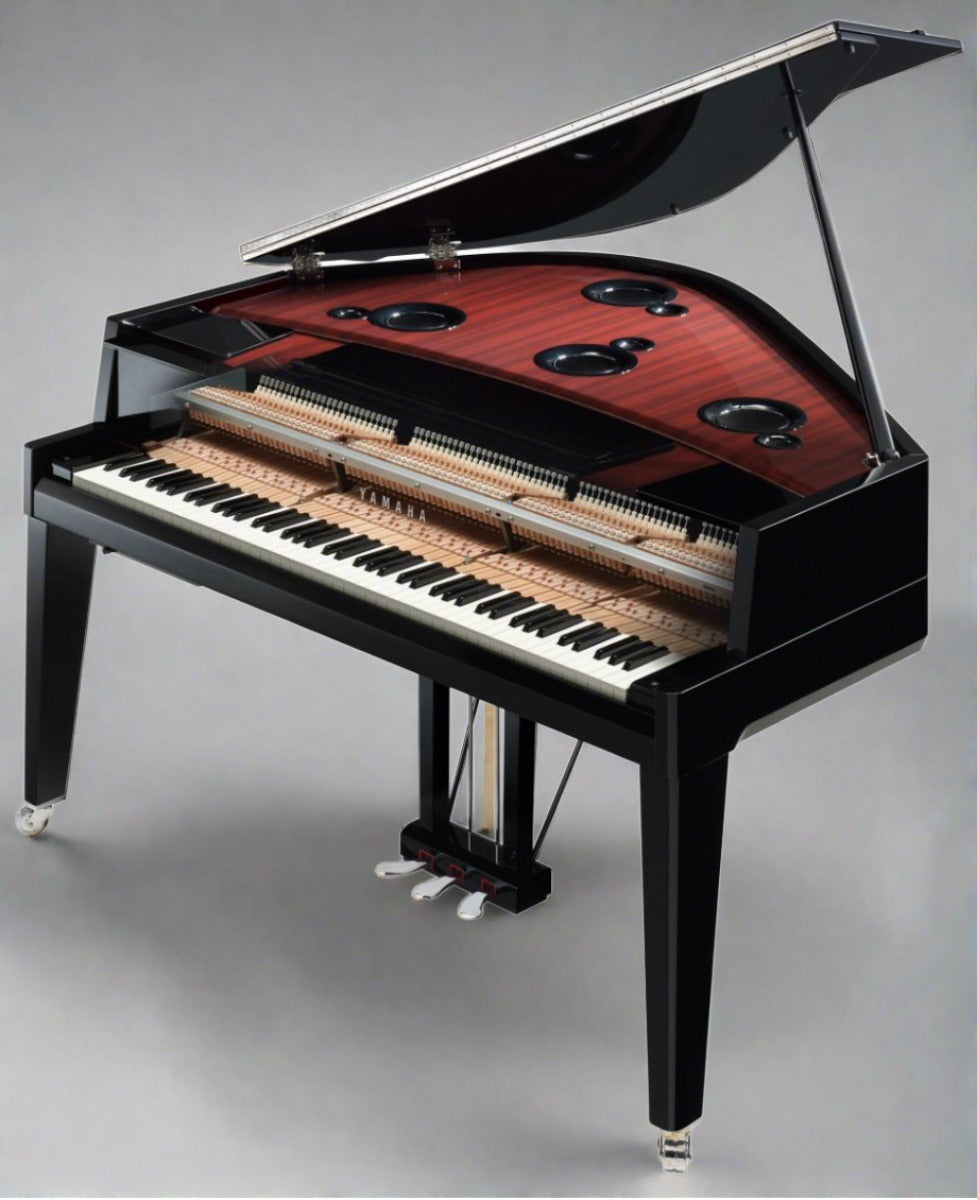

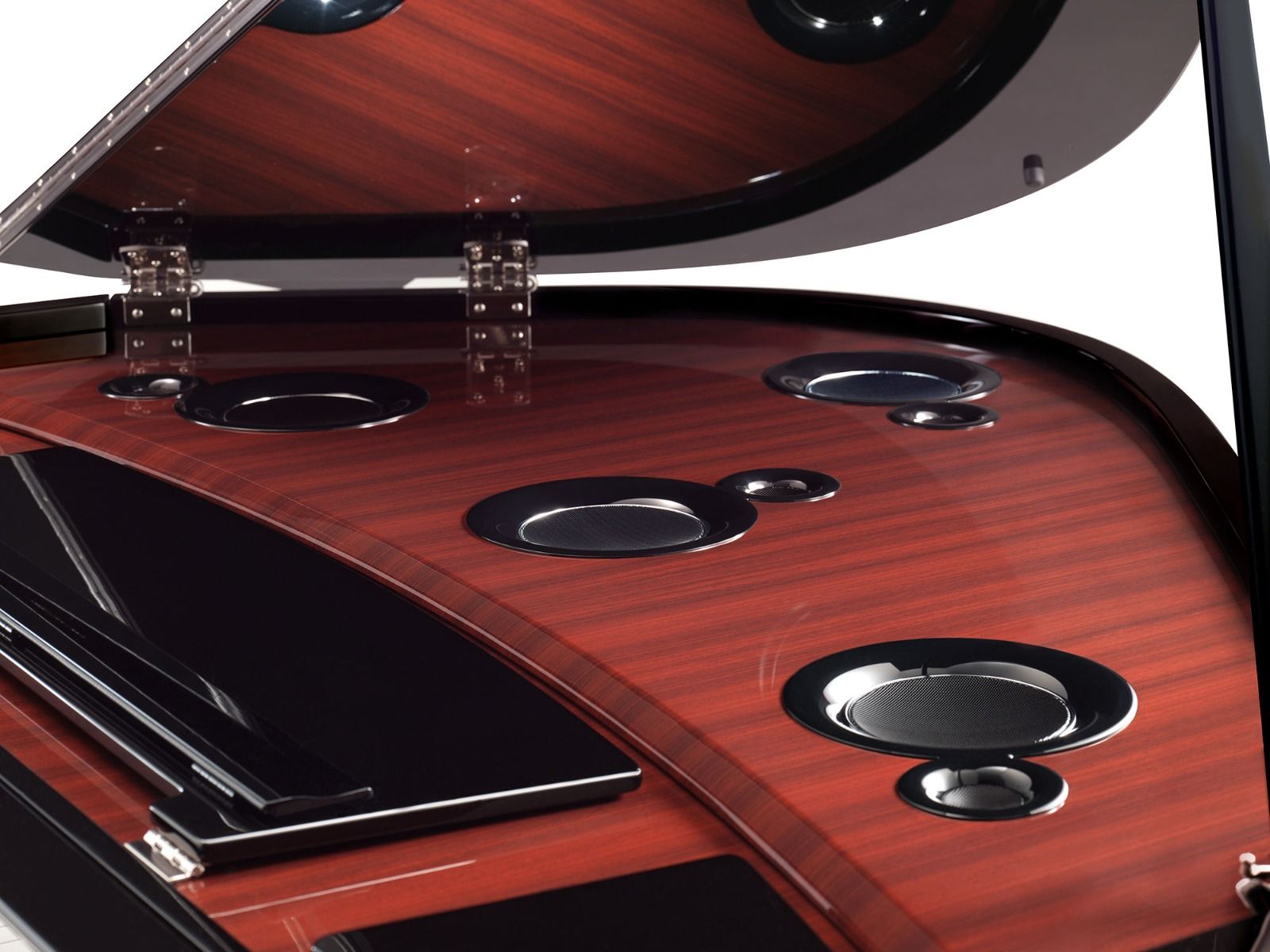

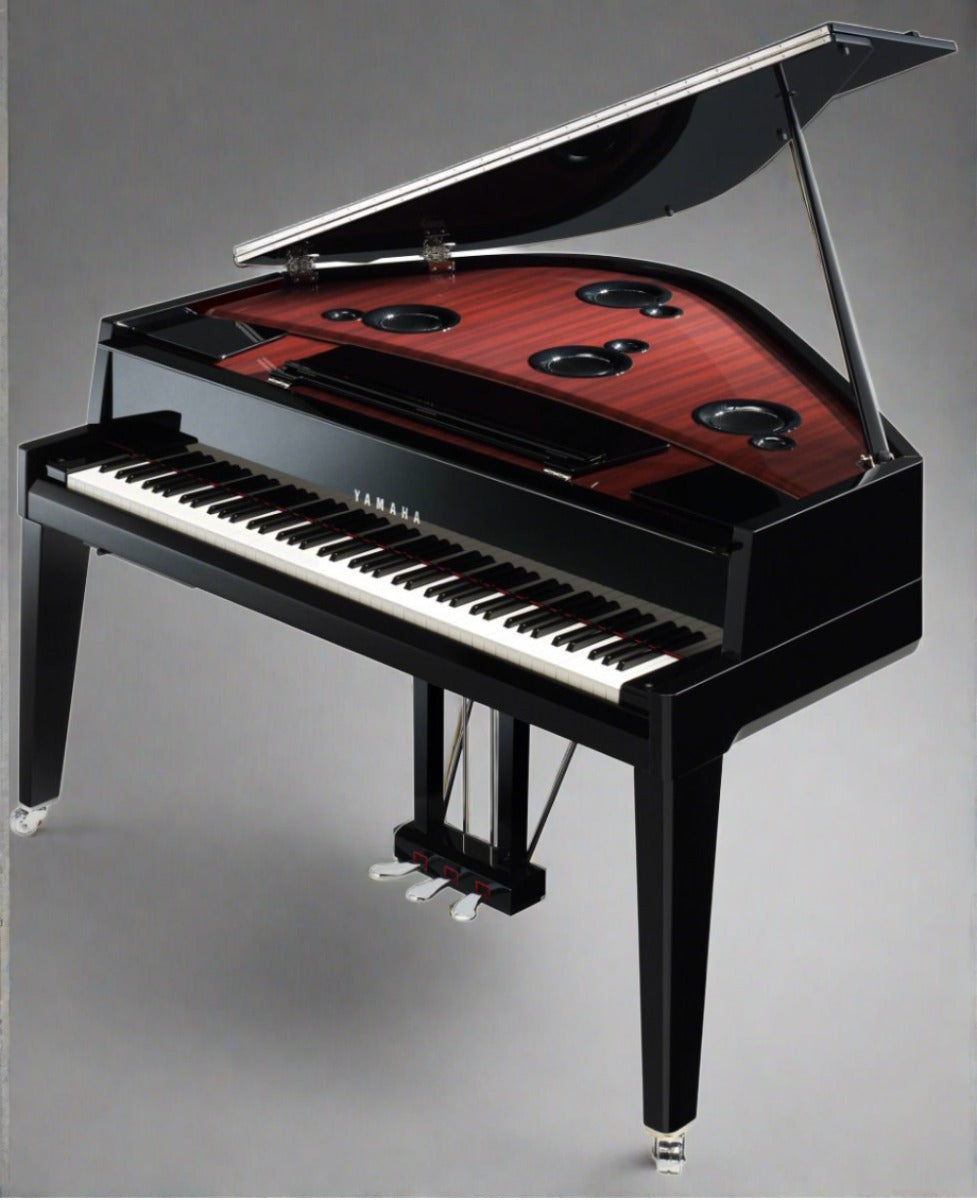

The Yamaha N3X AvantGrand hybrid grand piano allows for a physical bond with the instrument starting from the real wooden keys with comfortable Ivorite keytops, followed by the precise weight and responsiveness of Yamaha’s concert grand pianos. Optical sensors capture every nuance of the performance and produce an authentic sound reproduction. It offers a choice of two world-class grand pianos with their unique characters to express different emotions. The four-channel Spatial Acoustic Speaker System and Soundboard Resonator produce a realistic three-dimensional sound response, and Virtual Resonance Modeling calculates the states of the strings for each key. With binaural sampling technology, you can have a fully immersive headphone experience. The Tactile Response System conveys the natural vibrations that emanate from a grand piano, and the pedals replicate the sensations of a grand piano’s pedals. It also features USB audio recorder and XLR balanced audio outputs.
Specifications
| Color/Finish | ||
|
Cabinet
|
Color |
Polished Ebony
|
| Finish | Polished | |
| Size/Weight | ||
|
Dimensions
|
Width |
1,481 mm (58-5/16")
|
| Height |
1,014 mm (39-15/16") Lid up : 1,734 mm (68-1/4")
|
|
| Depth |
1,195 mm (47-1/16")
|
|
| Weight | Weight |
199 kg (438 lb, 12 oz)
|
| Control Interface | ||
|
Keyboard
|
Number of Keys | 88 |
| Key Surfaces - White | Ivorite® | |
| Touch Sensitivity |
Hard/Medium/Soft/Fixed
|
|
| Keyboard Action |
Specialized Grand Piano Action
|
|
| Type | - | |
| Tactile Response System (TRS) | Yes | |
|
Pedal
|
Type |
Specialized Grand Piano Pedal
|
| Number of Pedals | 3 | |
| Half Pedal | Yes | |
| Functions |
Damper (with half-pedal effect) , Sostenuto,Soft
|
|
|
Sensor/Driver
|
Hammer Sensors |
Non-contact optical fiber
|
| Key Sensors |
Non-contact optical fiber
|
|
| Cabinet | ||
| Key Cover | Soft-Close Fallboard | Yes |
| Music Rest | Yes | |
| Voices | ||
|
Tone Generation
|
Piano Sound |
Spatial Acoustic Sampling
|
| Binaural Sampling |
Yes (CFX Grand Voice only)
|
|
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Virtual Resonance Modeling (VRM) | Yes | |
| Tone Generating Technology | - | |
| Polyphony | Number of Polyphony (Max.) | 256 |
| Preset | Number of Voices | 10 |
| Effects | ||
|
Types
|
Reverb | Yes |
| Brilliance | 5 | |
| Intelligent Acoustic Control (IAC) | Yes | |
| Stereophonic Optimizer | Yes | |
| Songs | ||
| Preset | Number of Preset Songs |
10 preset songs, 10 voice demo songs
|
|
Recording
|
Number of Songs | 10 |
| Number of Tracks | 1 | |
| Data Capacity |
approx. 550 KB/Song
|
|
| Recording Function | Yes | |
|
Compatible Data Format
|
Playback |
SMF (Format 0, 1)
|
| Recording |
SMF (Format 0)
|
|
| Functions | ||
|
Overall Controls
|
Metronome | Yes |
| Tempo Range | 5 - 500 | |
| Transpose | -6 - 0 - +6 | |
| Tuning |
414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)
|
|
| Scale Type | 7 types | |
|
Audio Recorder/Player
|
Recording Time (max.) |
80 minutes/Song
|
| Recording |
WAV (44.1 kHz, 16 bit, stereo)
|
|
| Playback |
WAV (44.1 kHz, 16 bit, stereo)
|
|
| Storage and Connectivity | ||
|
Storage
|
Internal Memory |
approx. 1.4 MB
|
| External Drives |
USB Flash Drive
|
|
|
Connectivity
|
Headphones |
Standard stereo phone jack (x 2)
|
| MIDI | In/Out | |
| AUX IN | Stereo Mini | |
| AUX OUT |
[L/L+R] [R] (Standard stereo phone jack)
|
|
| OUTPUT |
[L] [R] (XLR jack, balanced)
|
|
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| Power Supply | ||
| Auto Power Off | Yes | |
| Power Supply | AC Inlet | |
| Sound System | ||
| Spatial Acoustic Speaker System | Yes | |
| Soundboard Resonator | Yes | |
| Amplifiers |
80 W x 2 + 45 W x 4 + 35 W x 5 + 25 W x 4
|
|
| Speakers |
(16 cm + 13 cm + 2.5 cm) x 4
|
|
